Center of Gravity Scale

This center of gravity scale was created to validate robot weight, vertical and horizontal robot center of gravity for manufacturing quality checks. It is constructed using two 24″ x 24″ x 3/8″ steel plates which are ground flat, with a grid of 16 M5 through holes for mounting fixtures, and an additional 16 patterned M5 holes for mounting 4 strain gages on the corners of the plate.

Skills

Design Engineering
GD&T
Electronics
Fabrication

Role

Individual Project

Opportunity Space

Robot CG is important for these reasons:

Product is a very tall and heavy robot
- If the robot falls (or is pushed) it can damage itself and/or harm customer
- If CG is improperly balanced, driven wheels can slip and cause odometry/navigation errors
- CAD is a good CG approximation, but not always accurate

Previous method for calculating actual CG were inaccurate and laborsome
- Using 4 scales to measure normal force on the wheels and manually calculating
- Scales tended to be +/-0.3kg

Design Requirements

Scale should support:

One robot drivetrain worth of space (preferably more)
Loads up to at least 250kg

2. Scale should accurately report:

Total Mass in kg
Center of Mass in X/Y coordinates in metric units (cm, mm)

3. Scale should be able to be “tared” or zero

4. Output should be readable and understandable by humans Loads should be able to be easily loaded on and off of the scale

Design Theory

a brief overview….

X & Y Center of Gravity

To model the scale, we have a plate supported by hinges at all four corners. There is a concentrated force F applied to the plate at coordinates x and y.

Simplifying the plate to beam (do not need stress & strain), we can ignore horizontal components as load cells only measure vertical displacement.

If we know all the reactions R0, R1, R2, and R3, we can find force F=R0+R1+R2+R3

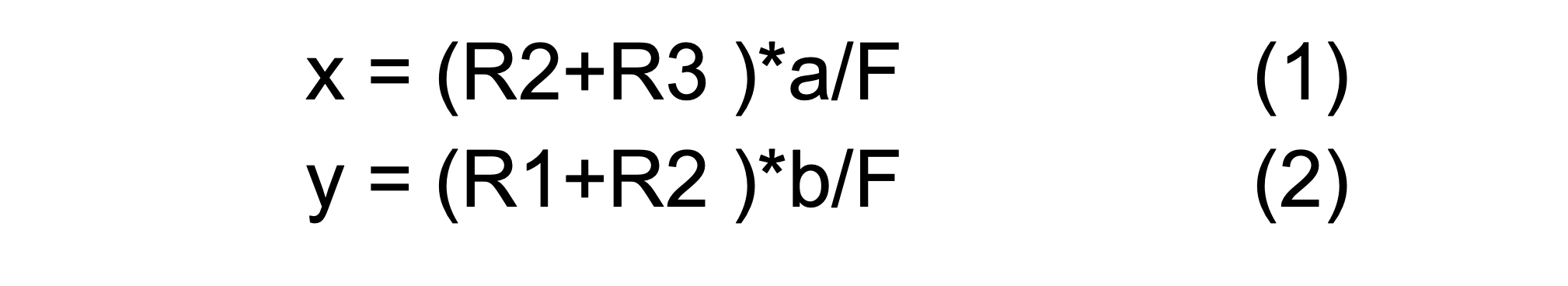

If we know the length and width of the plate, then we can calculate the center of gravity as

Z Center of Gravity

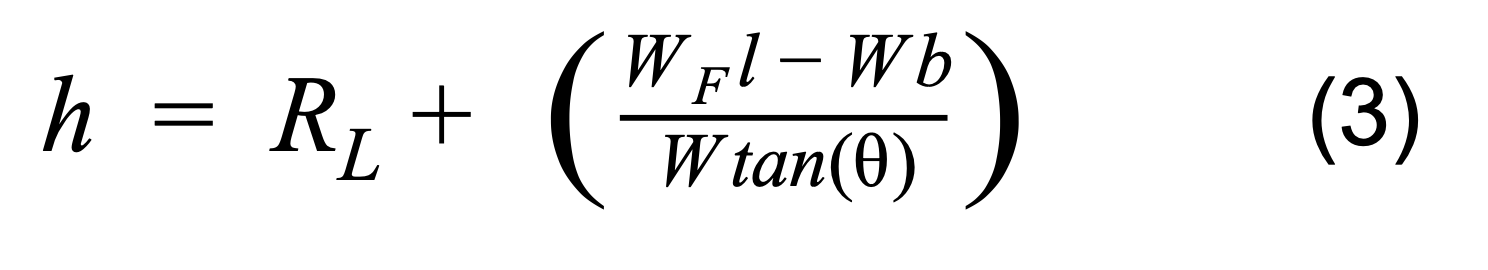

To find the height of the center of gravity we can tilt the platform by a known angle and then measuring the new COG again and figuring out the COG in 3D using transformations.

In order to tilt the platform by a known angle, a custom machined leg will fit into the base platform allowing it to tilt at 3 degrees. When removed, the base will be flat. Equations 1, 2, and 3 will be the basis for the circuit python after receiving digital inputs from the 4 load cells.

CAD Design

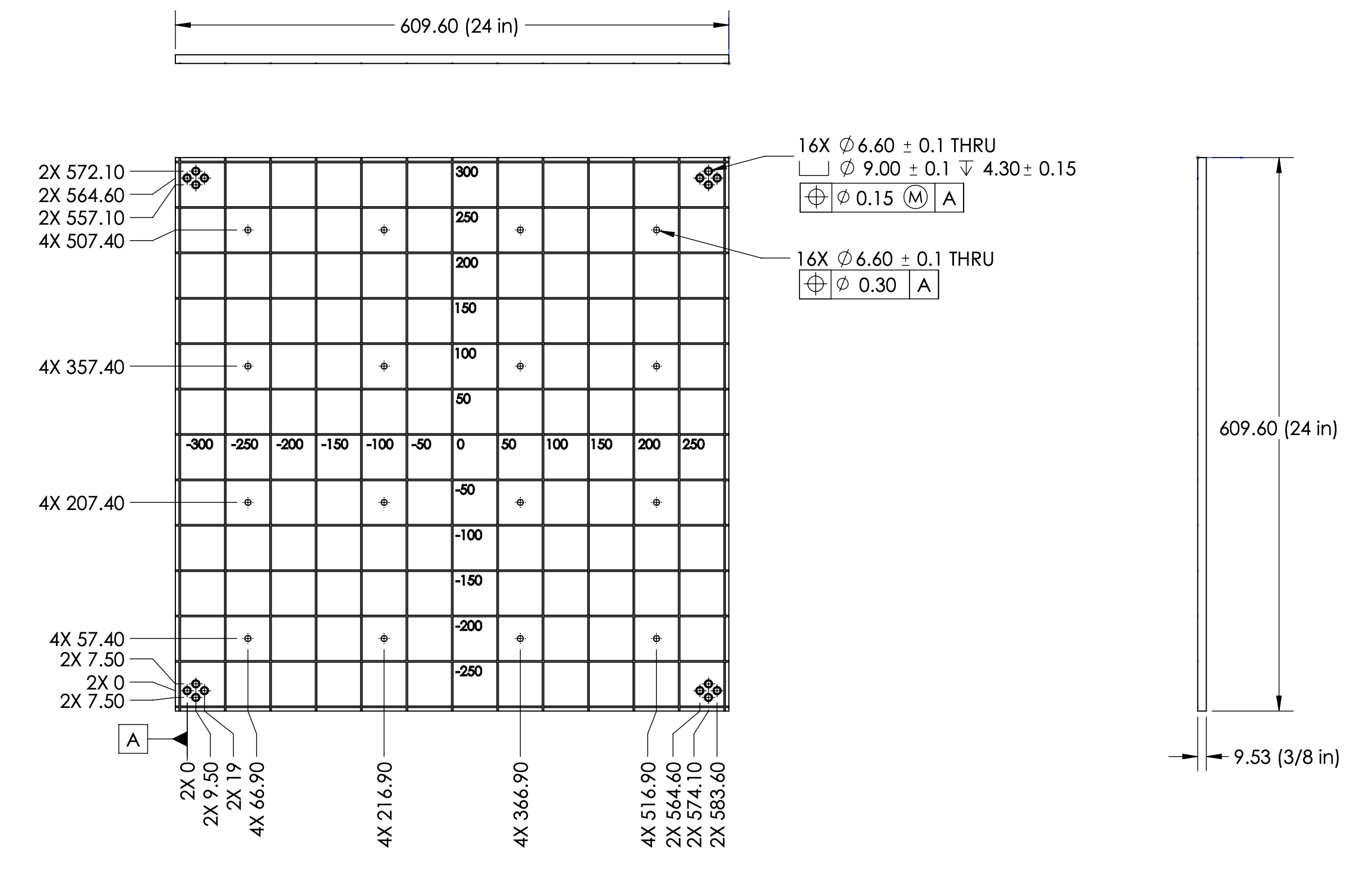

Top Plate

16 pattern holes
4 sets of 4 counterbored strain gage mounting holes
Measurement guide every 50 mm

Bottom Plate

4 sets of 4 counterbored strain gage mounting holes
Datum from mounting hole to reduce cost, GD&T restricts mounting hole pattern position to ensure assembly

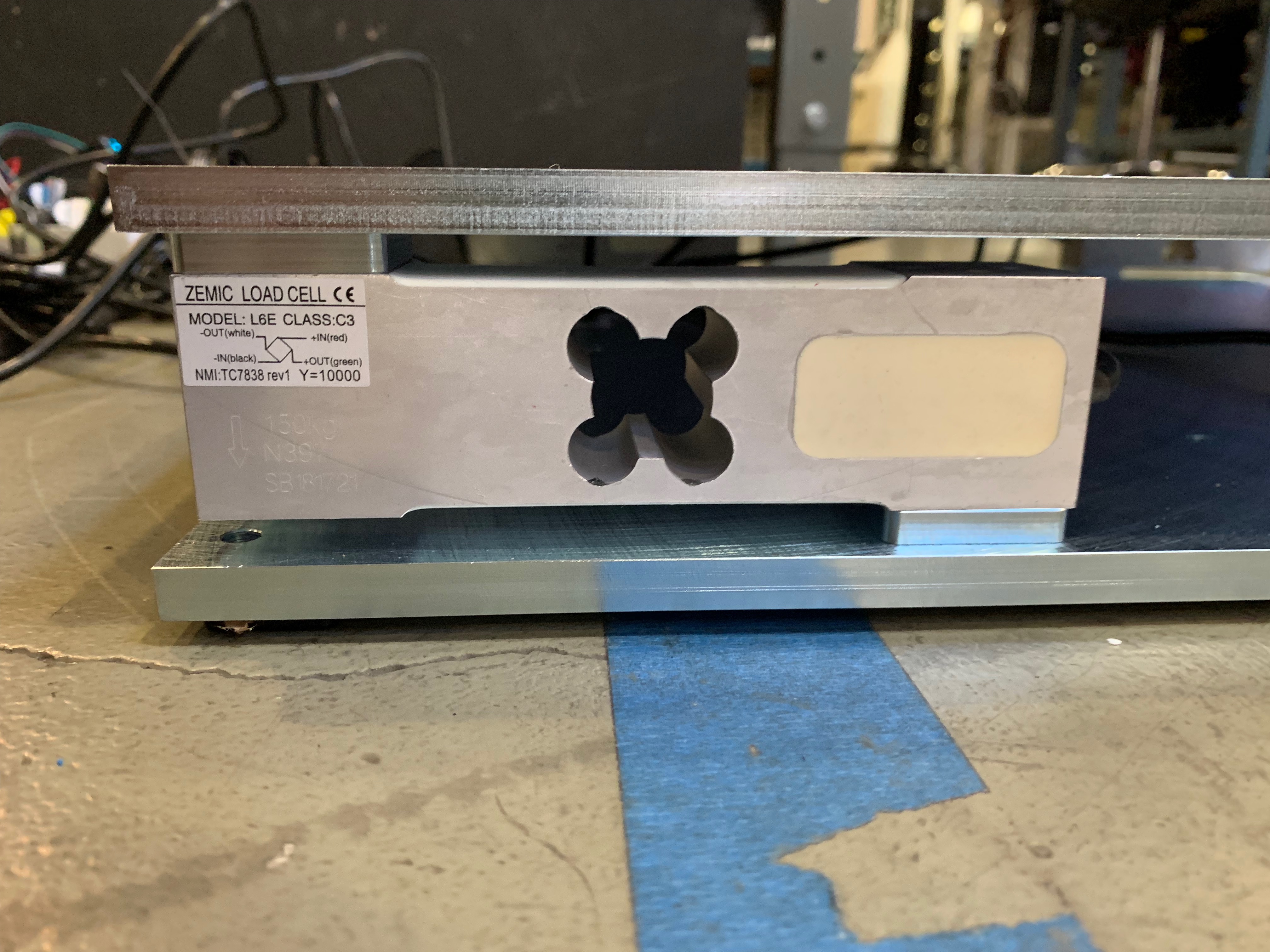

Strain Gage Spacer

Sandwiched between top plate and strain gage, and bottom plate and strain gage.
Allows strain gage to flex

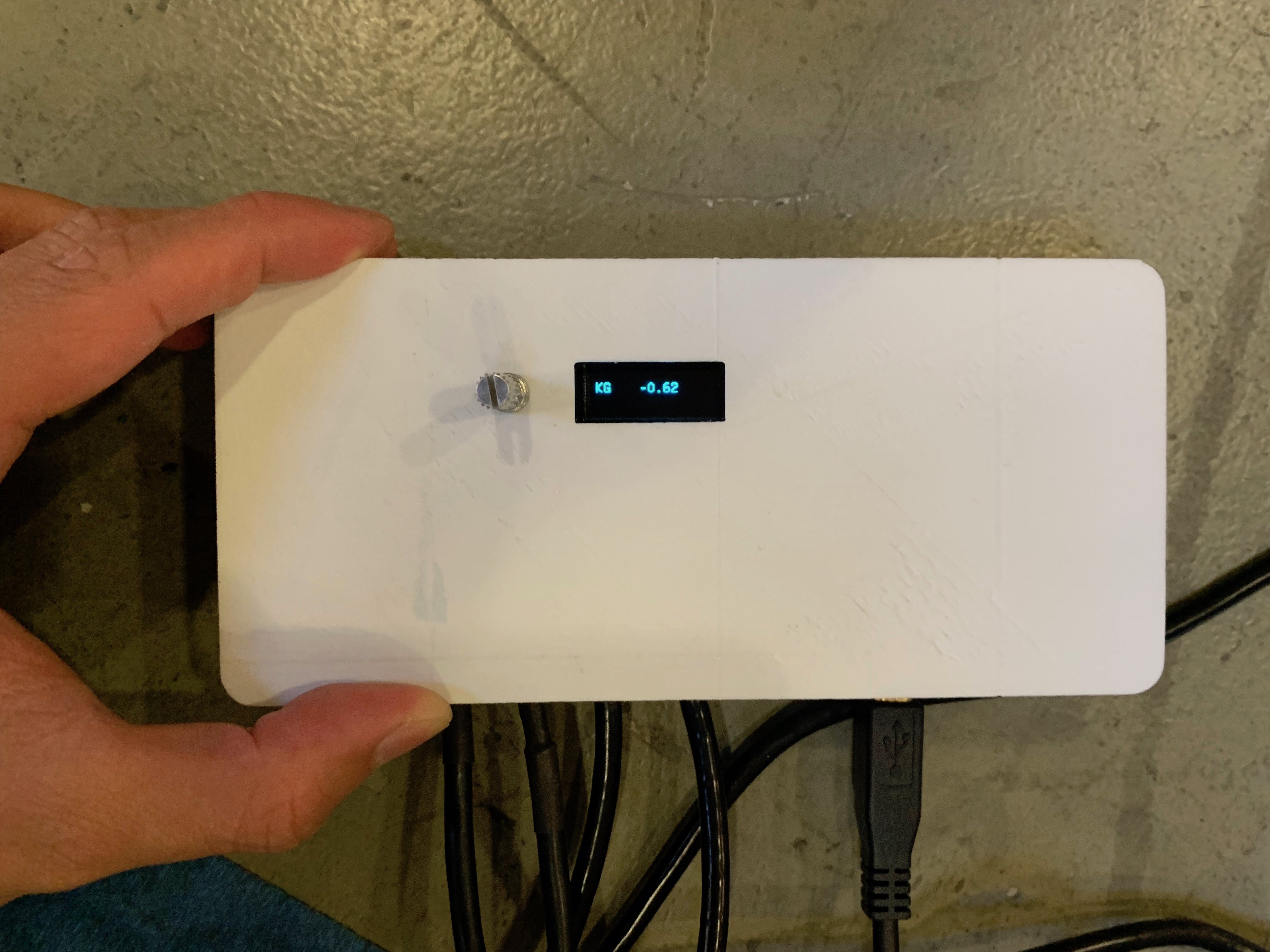

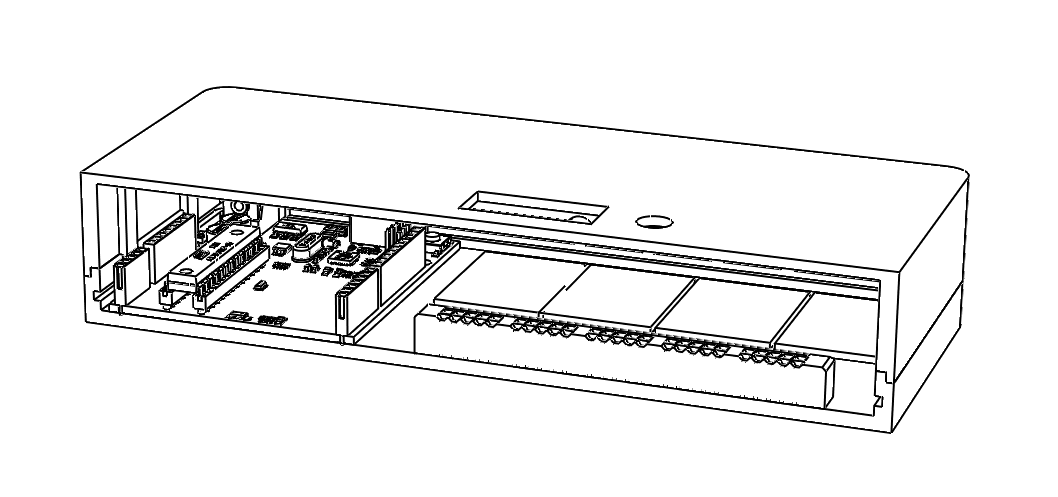

Electronics Box

3D printed to hold arduino, wheatstone bridges, OLED screen and control knob
OLED screen displays COG and mass
Knob allows for scale to be tared, switch between readings

Fabrication

Each strain gage can support a weight of 150lbs, allowing for a maximum of a 600lbs evenly distributed load.

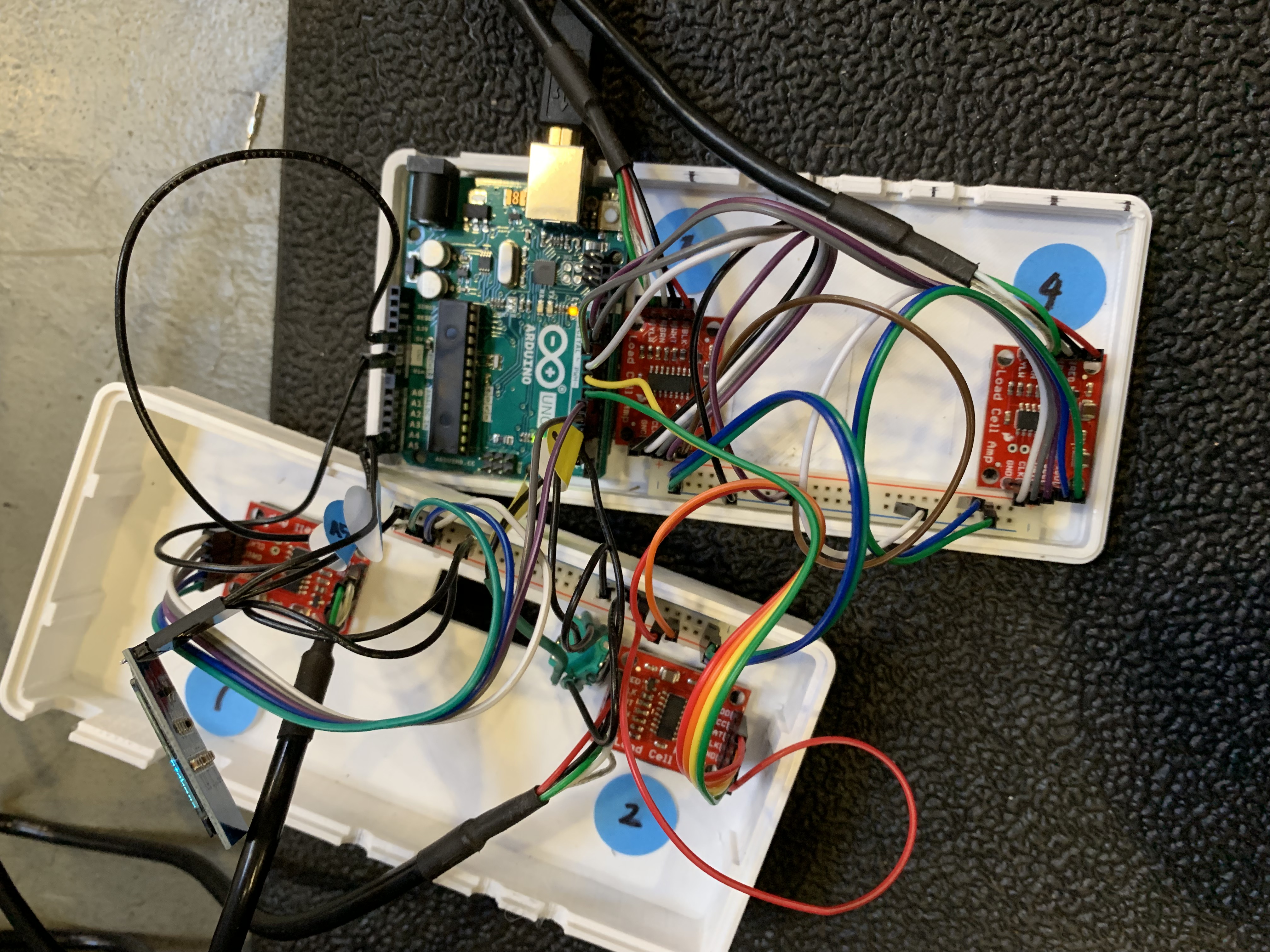

The strain gages are wired into wheatstone bridges which amplify the analog signal before it is sent into an arduino for processing.
Arduino outputs the Mass and CoG onto an OLED Screen

Calibration

Each strain gage needs to be calibrated against a known weight and zero

Once each strain gage was zeroed, the scale was calibrated and tested using a variety of weights

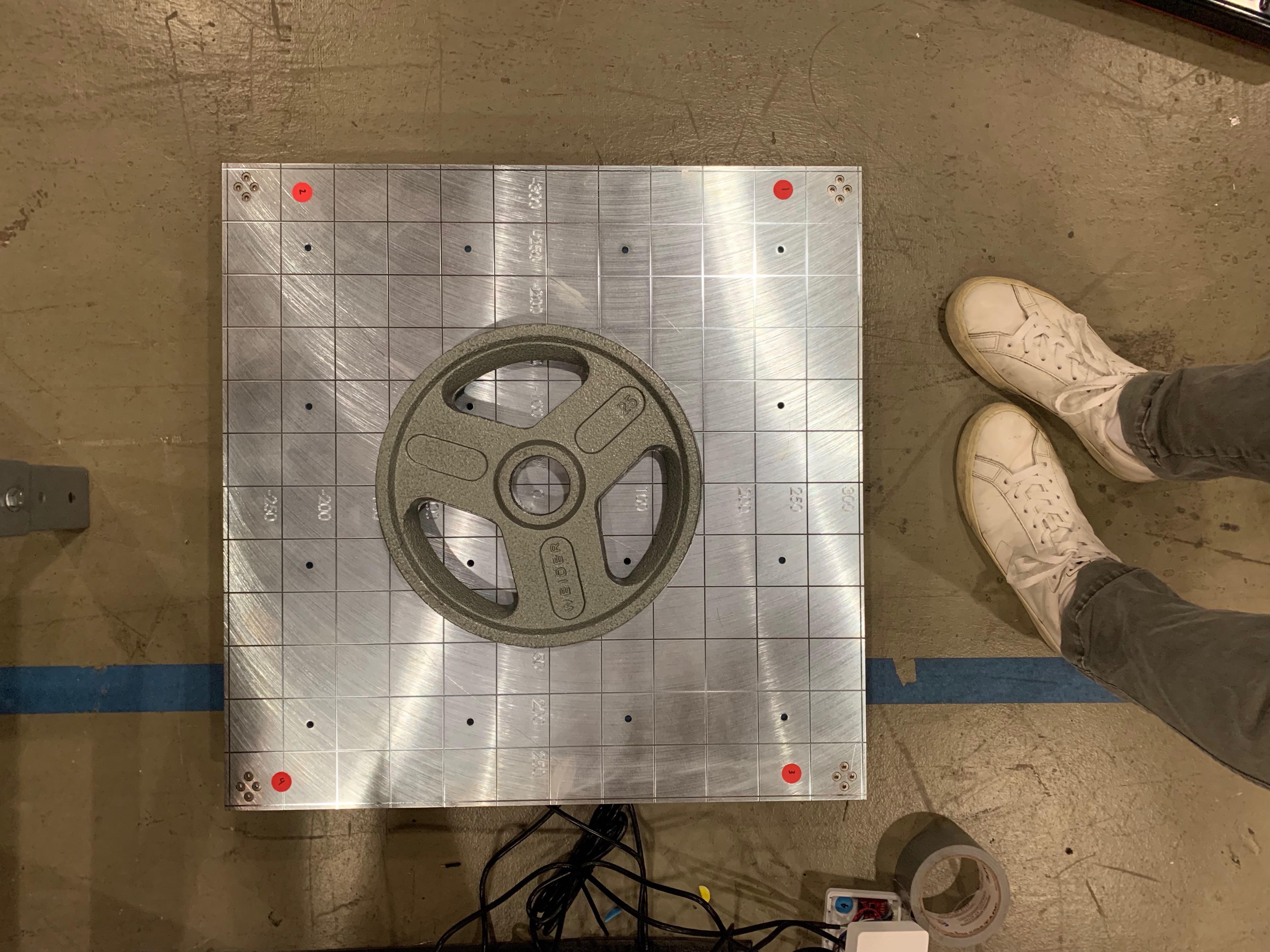

Final Product

Reflection

Gained additional experience with Arduino and working with sensors and their outputs.
Applied GD&T to ensure pattern features on parts would assemble.
Learned to use design requirements to drive research and prototyping.
